How to Install 3D Wall Panels: A Step-by-Step UK DIY Guide

Fitting brick effect wall panels is one of those jobs that looks intimidating in your head and turns out to be straightforward in practice. A typical 10m² feature wall is done in 2 to 4 hours with tools most people already own, no mortar, no mess, no waiting for layers to dry overnight.

This guide walks you through every step from start to finish: the tools you need, how to prep your wall, how to choose the right adhesive, how to cut around tricky bits like plug sockets, and the finishing touches that separate a Pinterest fail from a wall that looks properly fitted. We'll also flag the most common mistakes we see, so you can avoid them on your first install.

Watch the short clip below for a real-time view of the technique, then read on for the detail.

View this K&B install video on Instagram

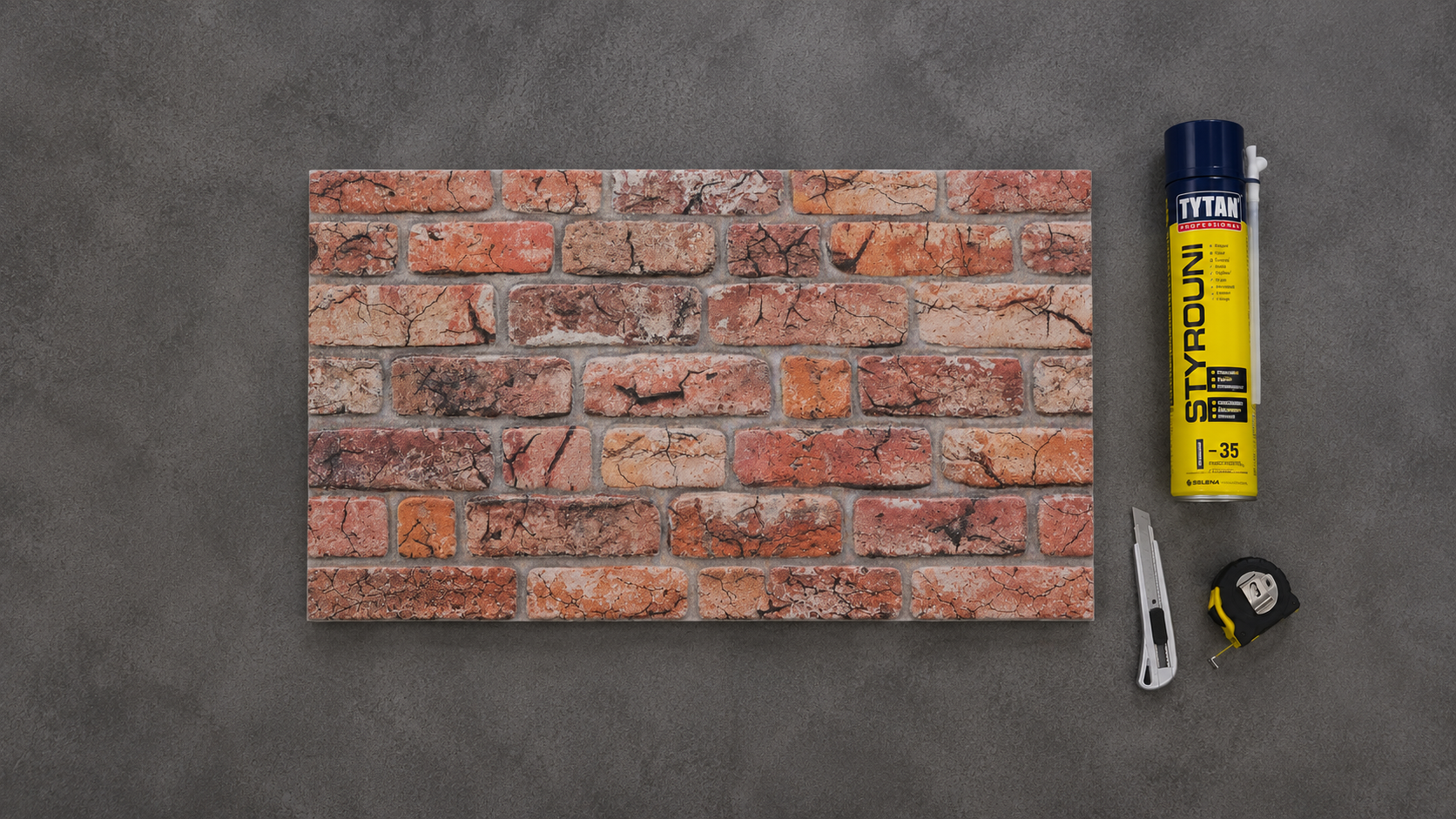

Tools and materials checklist

You don't need a workshop. Most of this lives in a kitchen drawer or under the stairs already. Here's the full list for a typical interior feature wall:

Essential tools:

• Sharp utility knife (Stanley knife) with spare blades. Panels cut cleanly when the blade is fresh, so swap blades every 5 to 6 cuts rather than forcing a dull one
• Tape measure
• Spirit level (any length works, but 60cm or longer is easier for keeping rows aligned)
• Pencil for marking cut lines
• Caulking gun (the standard skeleton type, not battery-powered)
• Hand saw or fine-toothed jigsaw blade (useful for cutting around socket boxes, though most cuts can be done with the knife)

Materials:

• Brick effect wall panels (each panel covers 0.5m², so for a 10m² wall you need 20 panels or 2 (10-packs from K&B)
• Construction adhesive. We supply TYTAN Professional Foam Adhesive (750ml) because it bonds quickly, fills small surface unevenness, and works on plasterboard, plaster, brick, MDF, and most painted surfaces. One can does roughly 8 to 10m² of panel coverage. Alternatives like Gripfill or No More Nails grab tubes will work too, but you'll go through them faster and they cure more slowly.
• Decorator's caulk in a grey or off-white shade (for filling small gaps at edges and joins)
• Masking tape (optional, useful for marking layout lines without pencil residue)

Optional but useful:

• Mitre box if you're cutting external corners at 45 degrees
• Touch-up acrylic paint in a colour that matches your panels, for hiding the white EPS edge after a cut
• Clear water-based varnish if any part of the wall sees direct sunlight or will be installed outdoors

Most of these are stocked together in our accessories collection, which is the easiest way to get everything in one delivery.

Preparing your wall

This is the step that 80% of failed installs skip. The panels are forgiving, but they bond to whatever they're stuck to, so if that surface is dusty, oily, or flaking, the panels will eventually come off with it.

Surfaces these panels work on:

• Plasterboard (the most common UK interior wall)
• Plastered brick or breeze block
• Painted walls (matte and silk finishes work best; high-gloss needs a light sand to give the adhesive a key)
• MDF, plywood, and timber sheet
• Tiles (yes, you can panel over an existing tiled splashback as long as the tiles themselves are sound)
• External rendered walls and cladding (with a suitable exterior-grade adhesive)

Surfaces to avoid or prep first:

• Bare untreated brick or stone (apply a coat of bonding primer first; the dust will otherwise compromise adhesion)
• Damp walls. Fix the damp first. Panels won't cause a damp problem but they won't fix one either
• Wallpaper. Always strip wallpaper back to the wall surface; never panel directly over paper, even lining paper
• Freshly painted walls. Wait at least 7 days for emulsion to fully cure before fitting panels on top

Quick prep checklist before you start:

1. Clear the wall of pictures, fittings, sockets covers, and skirting board if you want a flush finish at the bottom (most installs leave skirting in place and panel above it)
2. Wipe the wall down with a damp cloth or sugar soap to remove dust, cobwebs, and any grease (especially in kitchens)
3. Let the wall dry completely. Damp adhesive bonds are weak adhesive bonds
4. Check for loose paint or filler with your fingernail. Anything that flakes off needs to be scraped back and the area sanded smooth
5. If any sockets or switches sit on the wall area, switch them off at the consumer unit before you start cutting around them

Measuring and planning your layout

Five minutes spent planning saves an hour of cutting later. Before you open the box:

1. Measure the wall width and height in centimetres. Multiply to get the total area in cm², then divide by 5,000 to get m². Round up. A 4m wide × 2.5m high wall is 10m², which is 20 panels (or 2 boxes of 10).
2. Add 10% for waste. Cuts around corners, sockets, and edges mean some panel offcuts won't be reusable. For a 10m² wall, order 22 panels not 20. Better to have one or two spares than to run out mid-install and wait for a top-up delivery.
3. Decide your starting point. Most installers start from the bottom-left corner of the wall and work upwards in rows, left to right. This means your most visible row is full-width panels, with any necessary cuts hidden at the top and right edge where the eye doesn't naturally land.
4. Stagger the panel joins. Each panel is 100cm × 50cm. To create a natural brick appearance, offset every other row by half a panel (50cm), the same way a bricklayer staggers courses. Some installers prefer a quarter-panel offset (25cm) for a more random look. Both work, but pick one and stick to it across the whole wall.
5. Dry-lay the bottom row first. Before you apply any adhesive, place your bottom row of panels against the wall (held in place by hand or with masking tape) to confirm the layout works. This is your chance to spot problems early. If the rightmost panel ends up being a tiny 5cm sliver, shift your starting point so both end panels are roughly equal width.

Cutting panels around sockets and corners

Most cuts are straight lines, and the utility knife handles those easily. The trickier cuts are around plug sockets, light switches, window reveals, and external corners. Here's how to approach each:

Straight cuts

Mark your cut line with a pencil on the front of the panel. Place a metal straight edge or spirit level along the line and score firmly with the utility knife. Three or four passes will cut through the EPS core completely. Snap the panel along the score line. The cut edge will show a clean white core; you can touch this up with matching acrylic paint if it will be visible.

Cuts around plug sockets

Switch the power off at the consumer unit, then unscrew the socket faceplate so it sits proud of the wall by a centimetre. Hold the panel against the wall in its intended position and mark the corners of the socket onto the back of the panel with a pencil. Take the panel down, draw the rectangle, and cut it out with the utility knife (a few passes per side) or a fine-toothed jigsaw blade. Test-fit before applying adhesive and trim as needed. Once the panel is fitted, refit the faceplate so it sits on top of the panel and covers any small gap.

Internal corners

Where two walls meet on an internal corner, fit one wall's panel right up to the corner, then butt the adjacent wall's panel against it. A thin bead of decorator's caulk along the join will hide any small gap and tonally match the grout lines.

External corners

These are where a wall returns outwards (such as a chimney breast). You have two options:

• Butt joint: Cut both panels square and butt them together at 90 degrees. Quick, but you'll see a white edge unless you touch it up with matching acrylic paint.
• Mitre joint: Cut both panels at 45 degrees using a mitre box. The two cuts meet at the corner with no white edge visible. More work, but much cleaner result, especially on chimney breasts and feature columns.

If you've never mitred panels before, practise on an offcut first. Once you've got the technique, it takes about 90 seconds per cut.

Adhesive choice: foam, sheet, and silicone compared

Three main options work for these panels. Each has a place, but one stands out for most domestic installs.

Our recommendation for first-time installers is the TYTAN Professional Foam Adhesive. It expands slightly to fill gaps in uneven walls, grabs fast so panels don't slide, and one 750ml can covers most domestic feature walls in one go. The application gun is the same skeleton type you'd use for any cartridge adhesive.

Whichever adhesive you choose, apply it to the back of the panel in a zig-zag pattern (not a grid, not dots), keeping the bead about 2cm in from the panel edge to stop adhesive squeezing out at the joins. Five or six zig-zags across the back of a 100×50cm panel is the right amount. Too much adhesive and it oozes between panels; too little and the centre of the panel will lift over time.

Step-by-step installation

With the wall prepped, panels measured, and adhesive ready, here's the install sequence from first panel to last.

1. Mark a level horizontal line. Using your spirit level, draw a faint pencil line across the wall where the top of your bottom row will sit. This is your reference line, and getting it dead level matters more than any other single step. If the first row is crooked, every row above it will be too.
2. Apply adhesive to the first panel. Lay the panel face down on a clean surface. Apply the foam adhesive in a zig-zag pattern across the back, staying 2cm in from the edges.
3. Position and press. Lift the panel into position with the top edge running along your pencil line. Press firmly across the whole panel for 20 to 30 seconds, working from the centre outwards to push any air bubbles to the edge. The TYTAN adhesive will grab almost immediately.
4. Add the second panel. Apply adhesive to the next panel, butt it tightly against the first one (no gap, no overlap), and press. The panel edges are designed to interlock visually so the grout pattern continues seamlessly across the join.
5. Continue the bottom row. Work left to right across the wall. When you reach the right edge, measure the remaining space and cut your final panel to fit.
6. Start the second row offset. Cut a panel in half (a 50cm piece) and start the second row with this half-panel on the left. This staggers the vertical joins between rows, just like real brickwork.
7. Build upwards row by row. Continue working upwards, alternating starting positions each row to maintain the stagger. Check your spirit level every 2 to 3 rows to confirm you're still running level.
8. Handle the top row last. The top row almost always needs cutting down. Measure the remaining vertical gap between your last full row and the ceiling, then trim each panel in the top row to that height. Use the utility knife and a straight edge for clean cuts.
9. Press all panels firmly once the wall is complete. Walk along the wall pressing each panel for a few seconds to ensure full contact. Pay extra attention to corners and edges, which are the spots most likely to lift if missed.
10. Leave for 24 hours. The adhesive will reach full cure in a day. Don't hang anything on the wall, don't lean furniture against it, and don't fit electrical fittings back over panels until the next morning.

Finishing touches: caulking, painting, and sealing for outdoor use

Caulking the edges

Once all panels are in place and the adhesive has cured, run a thin bead of decorator's caulk along the perimeter where the panels meet the ceiling, skirting board, and any external corners. Use a damp finger to smooth the caulk into a neat line. This step covers any small gaps and gives a finished, professional look. Choose a caulk colour that matches your grout lines rather than bright white, which will draw the eye.

Touching up cut edges

Anywhere you cut a panel (around sockets, corners, the right edge of a wall) the white EPS core may be visible. Use a small artist's brush and a touch-up acrylic paint in a colour matching your panel's mortar lines or brick tone. Two thin coats covers completely. This is a five-minute job that elevates the whole wall.

Sealing for outdoor or wet-area use

For panels installed in bathrooms, kitchens with frequent steam, or outdoors, apply a clear water-based varnish across the finished wall once the adhesive has cured. A standard interior wall varnish (matte or satin) is fine for bathrooms; for fully exposed outdoor walls use an exterior-grade clear sealant. Apply with a soft brush in two thin coats, allowing each coat to dry per the manufacturer's instructions. This locks in colour, repels moisture, and extends life through UK weather cycles.

Common mistakes to avoid

Across hundreds of customer installs, the same handful of mistakes come up repeatedly. Knowing them in advance saves you the rework.

1. Skipping the spirit level on the first row. If your starting row is even 5mm off level, by the time you've worked up to the ceiling the error will be visibly compounded. Spend the extra two minutes getting the bottom dead level.

2. Applying too much adhesive. More glue does not mean a stronger bond. It just oozes between panels, where you have to scrape it off later. Stick to the zig-zag pattern, 2cm from the edges.

3. Forgetting to stagger the joins. If every row starts at the same vertical line, you end up with a grid pattern that doesn't read as brick. Always offset every other row by 50cm (or 25cm for a quarter-bond).

4. Cutting socket holes without switching off the power. This should be obvious but it's worth saying. Always isolate the circuit at the consumer unit before unscrewing faceplates and cutting around live sockets.

5. Fitting on dusty or freshly painted walls. Dust prevents adhesion, fresh paint is still off-gassing for at least a week. Both lead to panels lifting later. Wipe down, then wait if needed.

6. Trying to pull off and reposition a panel. Once the foam adhesive grabs, you have about 30 seconds to nudge a panel into final position. After that, pulling it back off will tear the panel and damage the wall. Get it right first time, measure twice, press once.

7. Forgetting the 10% waste allowance. Running out mid-install is the most demoralising mistake. Always order at least one extra panel beyond what your wall area calculation suggests.

Aftercare and cleaning

Brick effect wall panels are essentially maintenance-free, but here's how to keep them looking new:

• Routine dusting: A soft cloth or a vacuum brush attachment once a month is all most walls need. The textured surface holds slightly more dust than smooth paint, so a quick pass keeps it looking sharp.
• Stain removal: For marks, splashes, or kitchen grease, use warm water with a small amount of mild washing-up liquid on a soft cloth. Wipe gently, then dry with a clean cloth. Avoid abrasive scourers or scouring powders, which will dull the surface finish.
• Avoid harsh chemicals: Bleach, white spirit, and acetone-based cleaners can discolour the mineral coating. If you've spilled something requiring serious cleanup, test any cleaner on an offcut first.
• Touch-ups: If a panel is scratched or chipped, a small dab of matching acrylic paint repairs it invisibly. Keep one panel's worth of offcuts and a small pot of touch-up paint stored away after the install for exactly this purpose.
• Re-sealing outdoor installations: If panels are installed outdoors, refresh the clear sealant coat every 2 to 3 years to maintain UV resistance and weatherproofing.

That's it. The panels themselves will outlast most painted surfaces and don't need repainting, re-pointing, or any of the maintenance real masonry would require.
